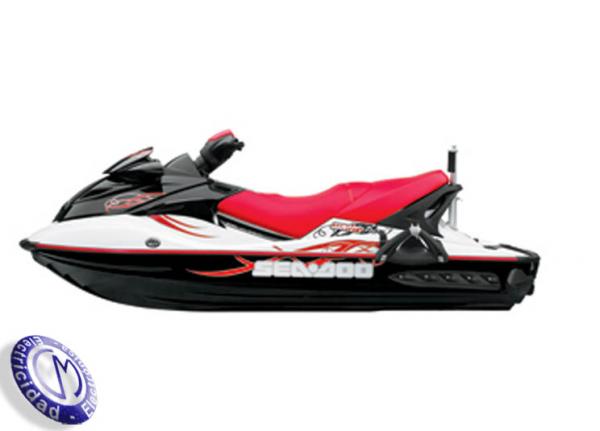

WATERCRAFT SEADOO modelo WAKE

WATERCRAFT SEADOO modelo WAKE
<- paginación ->

Especificaciones técnicas

Dimensions

Length:
130.3 in 331 cm
Width:
48 in 122 cm
Height:
47.2 in 120 cm
Weight (dry):
815 lbs 388 kg
Rider Capacity:
1, 2 or 3
Fuel Capacity (incl. reserve):
15.9 Gals 60 L
Storage Capacity:
33 Gals 130 L

Engine

Engine:
215 hp: Supercharged Intercooled Rotax® 4-TEC® engine
155 hp: Rotax® 4-TEC engine
Bore mm:
100
Stoke mm:
63.4
Displacement / hp:
155
Displacement / cc:
1494
Compression ratio:
215: 8.4:1
155: 10.6:1
Intake System:
215 hp: Supercharged with intercooler, 52mm throttle body
155 hp: Naturally aspirated with 52 mm throttle body
Cooling:
Closed-loop cooling system
Fuel Type:
215 hp: Premium unleaded
155 hp: Regular unleaded

Drive Unit

Propulsion System:
Sea-Doo® Direct Drive
Jet Pump:
215 hp: Aluminum, axial flow, single stage, large hub with
10-vane stator
155 hp: Composite/aluminum, axial flow, single stage, large hub with 10-vane stator
Transmission:
Direct drive, forward/neutral/reverse
Impeller:
Stainless steel

Electrical

Ignition:
Digital inductive
Battery:
12 volt

Hull

Hull:
Modified-V, composite
Colour:
Viper Red

Equipment

D.E.S.S. TM:
STD
Speedometer:
STD (Information Center)
