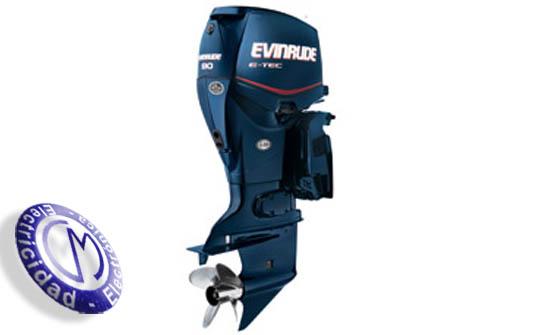

OUTBOARDS EVINRUDE modelo E-TEC90-INLINE-3

OUTBOARDS EVINRUDE modelo E-TEC90-INLINE-3
<- paginación ->

Especificaciones técnicas

Engine:
Inline 3-Cylinder E-TEC
Bore in/mm:
3.600 in / 91 mm
Stroke in/mm:
2.558 in / 66 mm
Displacement cu:
79 cui / 1295 cc
Starting:
Electric
Trim Method:
FasTrakTM Power Trim and Tilt
Propshaft kilowatts (HP):
90 HP (67 kw) @ 5000 RPM
Full Throttle Operating
Range (RPM):
4500-5500 tr/min
Gear Ratio:
2:1 | 2.25:1
Fuel Induction:
E-TEC direct fuel injection w/ stratified low RPM combustion mode
Alternator:
Variable Voltage Computer Controlled 75/25 Amp/1100 watt output w/ regulator
Cooling:
Pressure & Water Temperature Controlled
Steering:
Remote or Accessory Tiller
Limited Warranty:
3-Years Non-Declining
Compliance:
CARB 3-STAR / EPA / European Union
Colours:
Blue / White
Length:
20 in / 508 mm or 25 in / 635 mm
Dry Weight:
320 lbs / 145 kg or 326 lbs / 148 kg
