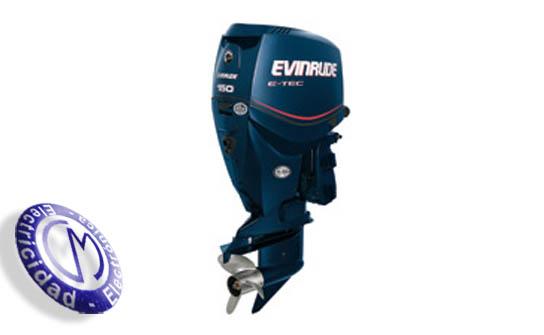

OUTBOARDS EVINRUDE modelo E-TEC150

OUTBOARDS EVINRUDE modelo E-TEC150
<- paginación ->

Especificaciones técnicas

Engine:
Loop-Charged V6 60° E-TEC
Bore in/mm:
3.600 in / 91 mm
Stroke in/mm:
2.558 in / 66 mm
Displacement cu:
158 cui / 2589 cc
Starting:
Electric
Trim Method:
FasTrakTM Power Trim and Tilt
Propshaft kilowatts (HP):
150 HP (112 kw) @ 5350 RPM
Full Throttle Operating
Range (RPM):
4850-5850 tr/min
Gear Ratio:
1.86:1 ou 1.85:1
Fuel Induction:
E-TEC direct fuel injection w/stratified low RPM combustion mode
Alternator:
Variable voltage computer controlled 133/50 Amp/1800 watt output w/ regulator
Cooling:
Pressure & Water Temperature Controlled
Steering:
Remote
Limited Warranty:
3-Years Non-Declining
Compliance:
CARB 3-STAR / EPA / European Union
Colours:
Blue / White
Length:
20 in / 508 mm or 25 in / 635 mm or 25 in / 508 mm
Dry Weight:
419 lbs / 190 kg or 427 lbs / 194 kg
