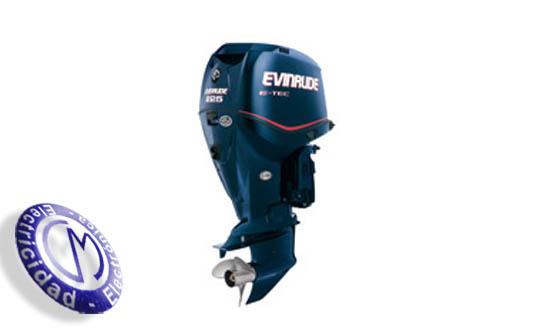

OUTBOARDS EVINRUDE modelo E-TEC-225

OUTBOARDS EVINRUDE modelo E-TEC-225
<- paginación ->

Especificaciones técnicas

Engine:
Loop-Charged V6 90° E-TEC
Bore in/mm:
3.854 in / 98 mm
Stroke in/mm:
2.858 in / 73 mm
Displacement cu:
200 cui / 3279 cc
Starting:
Electric
Trim Method:
FasTrakTM Power Trim and Tilt
Propshaft kilowatts (HP):
225 HP (168 kw) @ 5150 RPM
Full Throttle Operating
Range (RPM):
4500-5800 tr/min
Gear Ratio:
1.85:1
Fuel Induction:
E-TEC Direct Fuel Injection w/stratified low RPM combustion mode
Alternator:
Variable voltage computer controlled 133/50 Amp/1800 watt output w/ regulator
Cooling:
Pressure & Water Temperature Controlled
Steering:
Remote
Limited Warranty:
3-Years Non-Declining
Compliance:
CARB 3-STAR / EPA / European Union
Colours:
Blue / White
Length:
20 in / 508 mm or 25 in / 635 mm or 30 in / 762 mm
Dry Weight:
516 lbs / 234 kg or 524 lbs / 238 kg or 530 lbs / 240 kg
